Vision

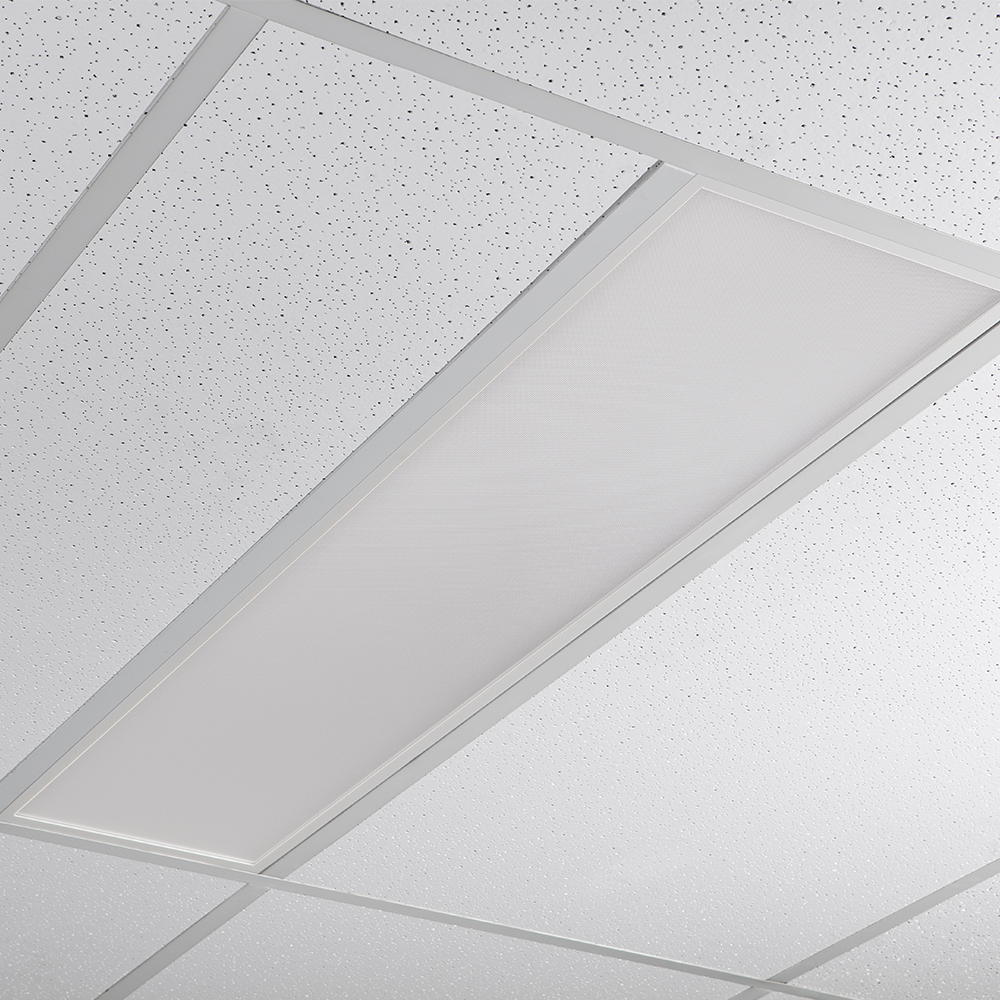

The Vision is a high-performance LED panel designed for T-Bar & Plaster recessed applications as well   as fluorescent retrofit replacement. High efficacy, superior colour rendering (≤3 MacAdam) providing accurate and vibrant color representation and a slimline design. The panel also features a micro prismatic, anti-glare diffuser for optimal light distribution and comfort.

Features

  • Edge-lit, high performance slimline LED panel
  • Superior colour rendering index Ra≥90 & ≤3 MacAdam
  • Micro prismatic, anti-glare diffuser for optimal light distribution
  • Superior lumen maintenance ≥60,000h L70/B10
  • IPART and VEU accepted
No items found.
Arrow Left
Arrow Left

Technical Specs.

Luminaire system wattage*
18W ~ 38W
Luminous flux*
2070lm ~ 4370lm
Luminaire efficacy (avg.)
115lm/W (6030, 6060, 1230 models) 105lm/W (1260, 1530 models)
Correlated colour temperature
4000K (Standard), 3000K & 5700K on request
Colour rendering index
Ra ≥82, Ra≥98/COI Compliance on request
Unified Glare Rating
≤19*
Beam
90°
Service lifetime*
>50,000h L70/B10
No items found.

Non stocked item. Lead times apply

Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

Item Code

Dimensions

Lumens

CRI

CCT

Type

Finish

Control

IES

Data Sheet

VIS1232115940

1195x295x10mm

2115lm

Ra>90

4000K

Standard

White

Non-Dim

VIS1232115940B

1195x295x10mm

2115lm

Ra>90

4000K

Standard

White

Bluetooth

VIS1232115940D

1195x295x10mm

2115lm

Ra>90

4000K

Standard

White

DALI

VIS1232115940T

1195x295x10mm

2115lm

Ra>90

4000K

Standard

White

DSI

VIS1232805940

1195x295x10mm

2805lm

Ra>90

4000K

Standard

White

Non-Dim

VIS1232805940B

1195x295x10mm

2805lm

Ra>90

4000K

Standard

White

Bluetooth

VIS1232805940D

1195x295x10mm

2805lm

Ra>90

4000K

Standard

White

DALI

VIS1232805940T

1195x295x10mm

2805lm

Ra>90

4000K

Standard

White

DSI

VIS1233635940

1195x295x10mm

3635lm

Ra>90

4000K

Standard

White

Non-Dim

VIS1233635940B

1195x295x10mm

3635lm

Ra>90

4000K

Standard

White

Bluetooth

VIS1233635940D

1195x295x10mm

3635lm

Ra>90

4000K

Standard

White

DALI

VIS1233635940T

1195x295x10mm

3635lm

Ra>90

4000K

Standard

White

DSI

VIS1234320940

1195x295x10mm

4320lm

Ra>90

4000K

Standard

White

Non-Dim

VIS1234320940B

1195x295x10mm

4320lm

Ra>90

4000K

Standard

White

Bluetooth

VIS1234320940D

1195x295x10mm

4320lm

Ra>90

4000K

Standard

White

DALI

*Refer to data sheet for technical data.
